Name: 150W Outdoor LED Street Light Housing for Motorways Major roads Minor roads
Brand: Die Casting Man
Price: 1 USD

Brand Name : Die Casting Man

Model Number : YASL-10-150

Certification : CE, RoHs, ENEC, CB

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : By T/T 30% in advance and 70% after shipment EXW/FOB NINGBO, Western Union, L/C

Supply Ability : 10000PCS/Month.

Delivery Time : 7-30 days base on order quantity

Packaging Details : Carton box

Material : die casting Aluminum

Wattage : 150W

CCT : 3000-6500K

Efficiency : >120lm/w

CRI : >70

IP : 66

Contact Now

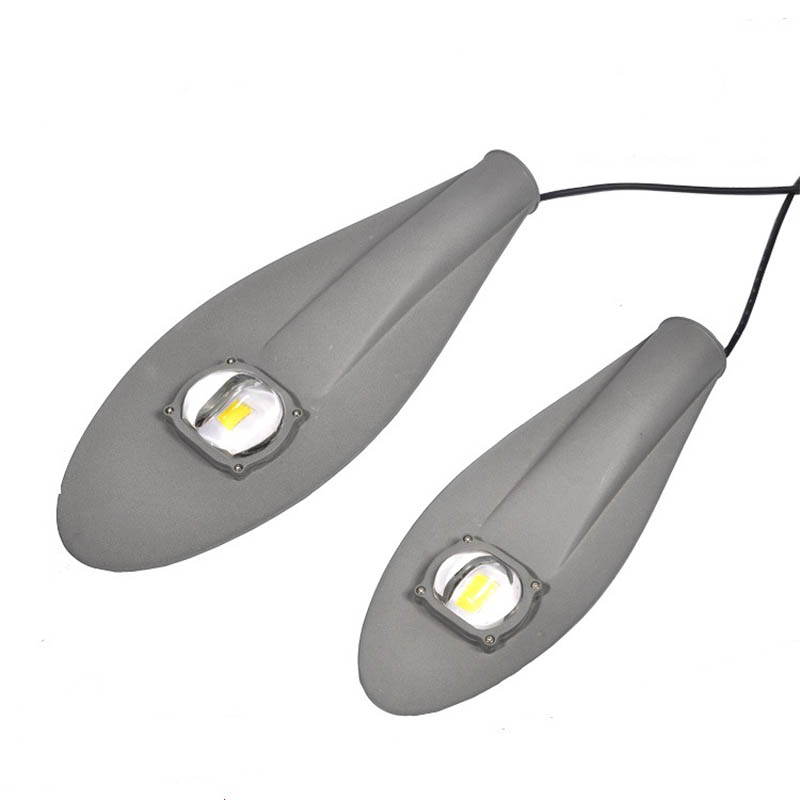

Aluminum Die Casting 100-120W Outdoor LED Street Light Housing / Street Lighting Fixture

Product Specification:

Product Code	ZHSL-10-50	ZHSL-10-100	ZHSL-10-120	ZHSL-10-180
Input Wattage	50W	100W	120W	180W
Color Temperature	3000-6500K	3000-6500K	3000-6500K	3000-6500K
Luminous Flux	8800-9600lm	13200-14400lm	19800-21600lm	18900-21600lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra≥70	Ra≥70	Ra≥70	Ra≥70
Temperature of working condition	-40-50℃	-40-50℃	-40-50℃	-40 50℃
Humidity of working condition	20%-90%RH	20%-90%RH	20%-90%RH	20%-90%RH
LED Lifetime	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66
Installation Pipe Diameter	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Installation Height	5-8m	6-10m	8-12m	10-14m
Net Weight	3.8kgs	5.5kgs	6.5kgs	8.5kgs
Gross Weight	4.2kgs	6.0kgs	7.0kgs	9.0kgs
Packing Size(mm)	545230115	665300140	750280220	865360180
Product Size(mm)	48017495	600235100	700271112	825309113

Applications:

Motorways,Major roads,minor roads,roundabouts,crossing and industrial areas.

We are a professional Die casting factory for around 30years.

If you are importing lighting fixture,of sure our company will be a good option for you since:

1)we can use the material according to your component request.

2)we are die-casting manufacturer for around 30year, we are professional on lighting design and the quality and cost control.

3)we have profession engineer to make sure the design of the housing or the technical date of the product is meet your requirement.

make your idea/drawing to be truth.

4)we are a lighting industrial park,so we can offer the best delivery for you.

5)we have good experience on assembling and exporting lighting fixture for around 10 years,so can offer you very good service.
